实时采集Mysql多表采集过滤字段案例

场景描述

某银行作为一家区域性商业银行，正在进行数字化转型，核心业务系统（如信用卡交易、客户管理、账户管理等）采用MySQL数据库存储数据。为满足实时风控、客户画像分析、监管报送等需求，银行需要将MySQL的binlog变更数据实时采集到大数据平台（如Flink + Kafka），由于监管数据安全合规要求，在银行涉及多张业务表采集时需要过滤敏感字段。

现有CDC方案缺乏灵活过滤能力

当前使用Debezium或Canal采集binlog，但无法在采集阶段过滤敏感字段。

Chunjun实现原理方案

使用Mysql-X采集binlog日志增加过滤条件，支持配置filterColumns过滤参数，同时支持多表以及正则过滤条件。

实时采集Mysql多表过滤

前置环境准备

数栈6.2版本
FLinkSQL1.16版本
Mysql5.7数据源、Kafka2.x数据源
Mysql来源表构建

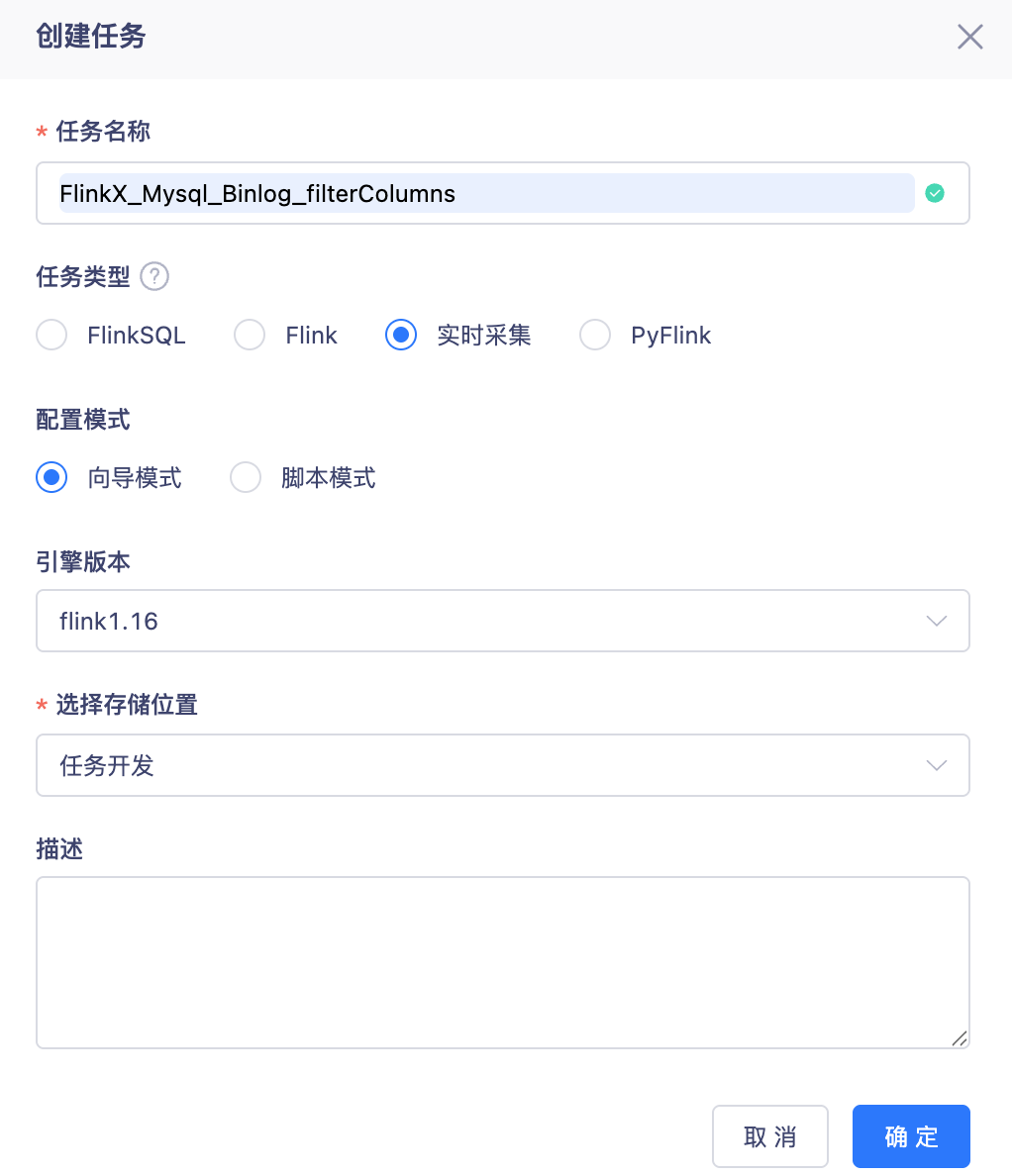

开发实时采集任务

实时采集任务来源表Mysql、目标表kafka 通过日志采集的方式进行数据采集

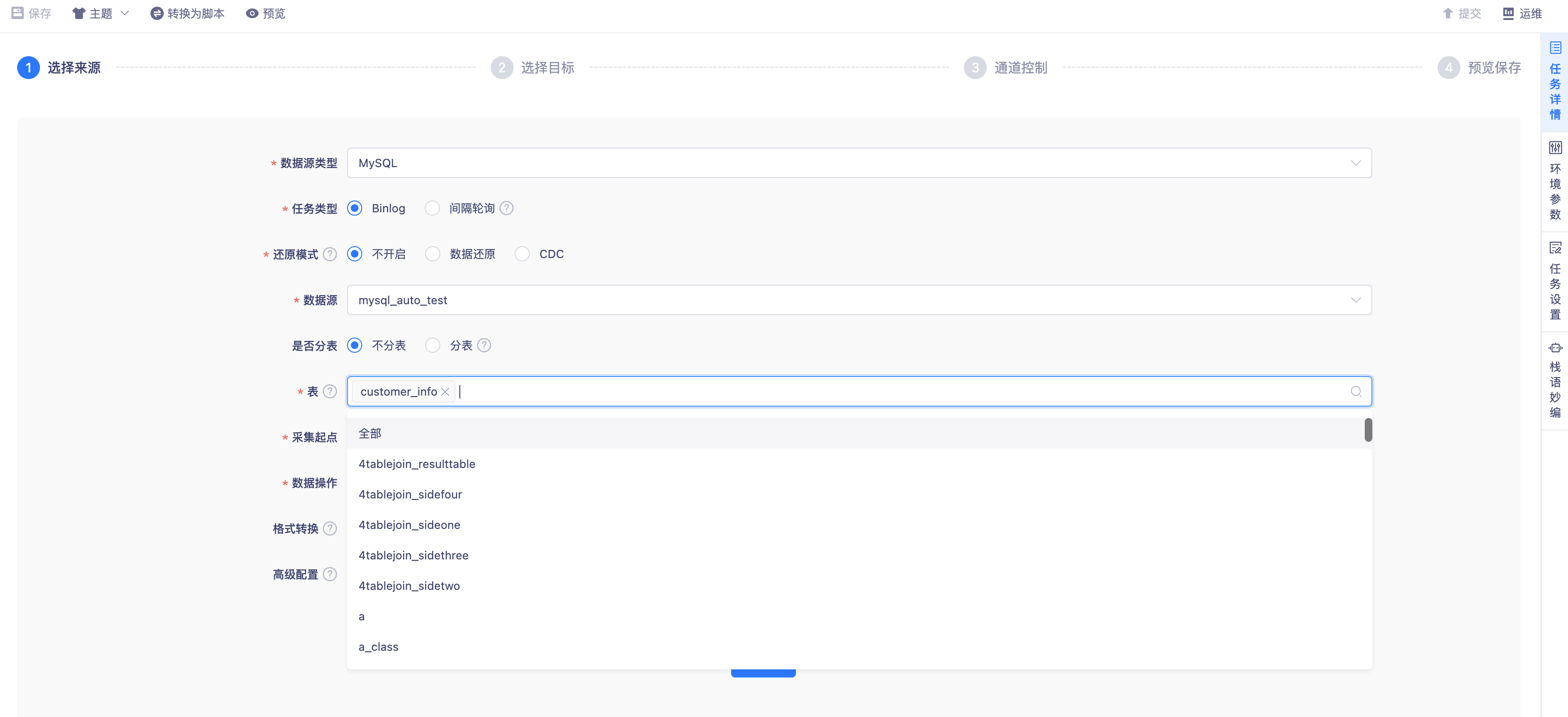

配置采集来源表Mysql，选择Source采集表，支持多表过滤字段。

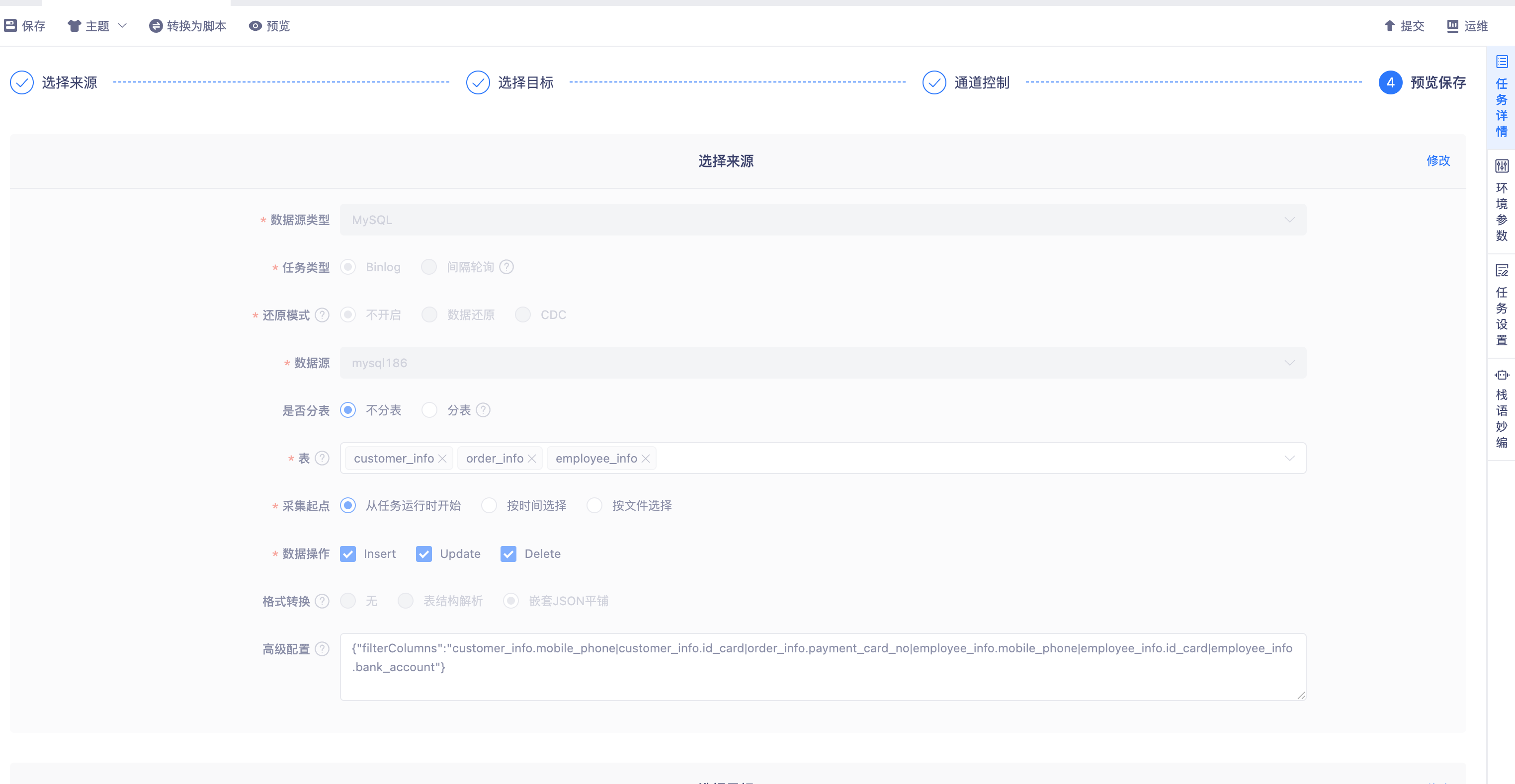

配置采集Mysql源表高级配置，增加filterColumns过滤参数。


{"filterColumns":"employee_info.bank_account"} -- 单表过滤字段样例

{"filterColumns":"(customer_info.customer_.*)"} -- 正则表达式过滤样例

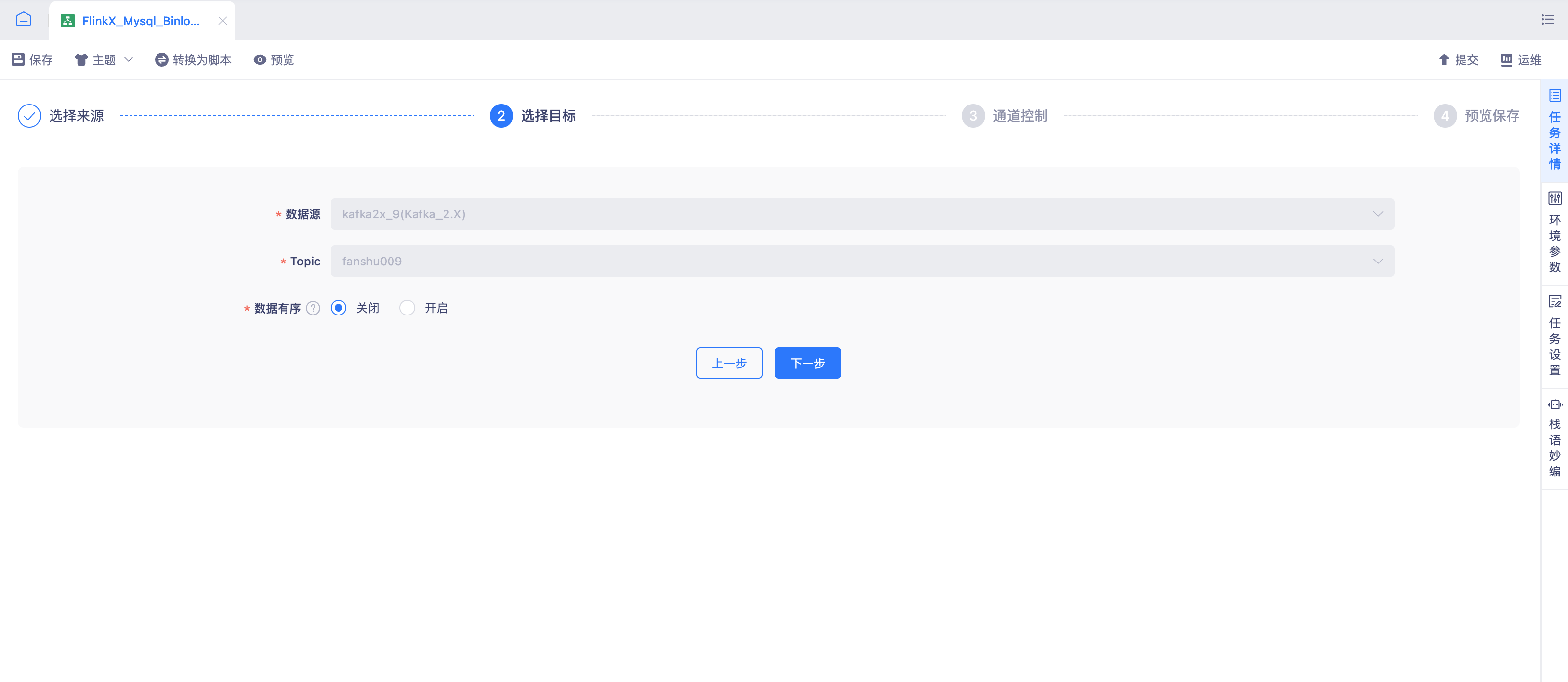

配置目标表kafka
- 目标配置Kafka Topic ，选择单个Topic将采集多个来源表写入同一个Topic中

脚本预览

{
  "job" : {
    "content" : [ {
      "reader" : {
        "parameter" : {
          "password" : "******",
          "port" : 3306,
          "cat" : "insert,update,delete",
          "host" : "localhost",
          "jdbcUrl" : "jdbc:mysql://localhost:3306/automation",
          "start" : { },
          "filterColumns" : "customer_info.mobile_phone|customer_info.id_card|order_info.payment_card_no|employee_info.mobile_phone|employee_info.id_card|employee_info.bank_account",
          "readPosition" : "current",
          "pavingData" : true,
          "table" : [ "customer_info", "order_info", "employee_info" ],
          "username" : "drpeco"
        },
        "name" : "binlogreader"
      },
      "writer" : {
        "parameter" : {
          "producerSettings" : {
            "zookeeper.connect" : "",
            "bootstrap.servers" : "localhost:9092"
          },
          "dataCompelOrder" : false,
          "topic" : "test"
        },
        "name" : "kafkawriter",
        "type" : 37
      }
    } ],
    "setting" : {
      "restore" : {
        "isRestore" : true,
        "isStream" : true
      },
      "errorLimit" : { },
      "speed" : {
        "readerChannel" : 1,
        "writerChannel" : 1,
        "bytes" : -1048576,
        "channel" : 1
      }
    }
  }
}

任务提交任务运维中心，任务运行中采集输出至目标表Mysql。

来源表 Mysql表插入 Insert语句操作完成。

Mysql表插入 Insert语句

INSERT INTO `employee_info` (`employee_no`, `employee_name`, `department`, `position`, `mobile_phone`, `id_card`, `bank_account`, `entry_date`) VALUES
('EMP1022', '赵七一', '财务部', '会计', '13500135003', '120106198712124560', '6222021234567890125', '2018-03-15');

目标表 Kafka Topic 查询FlinkX采集并过滤后的数据

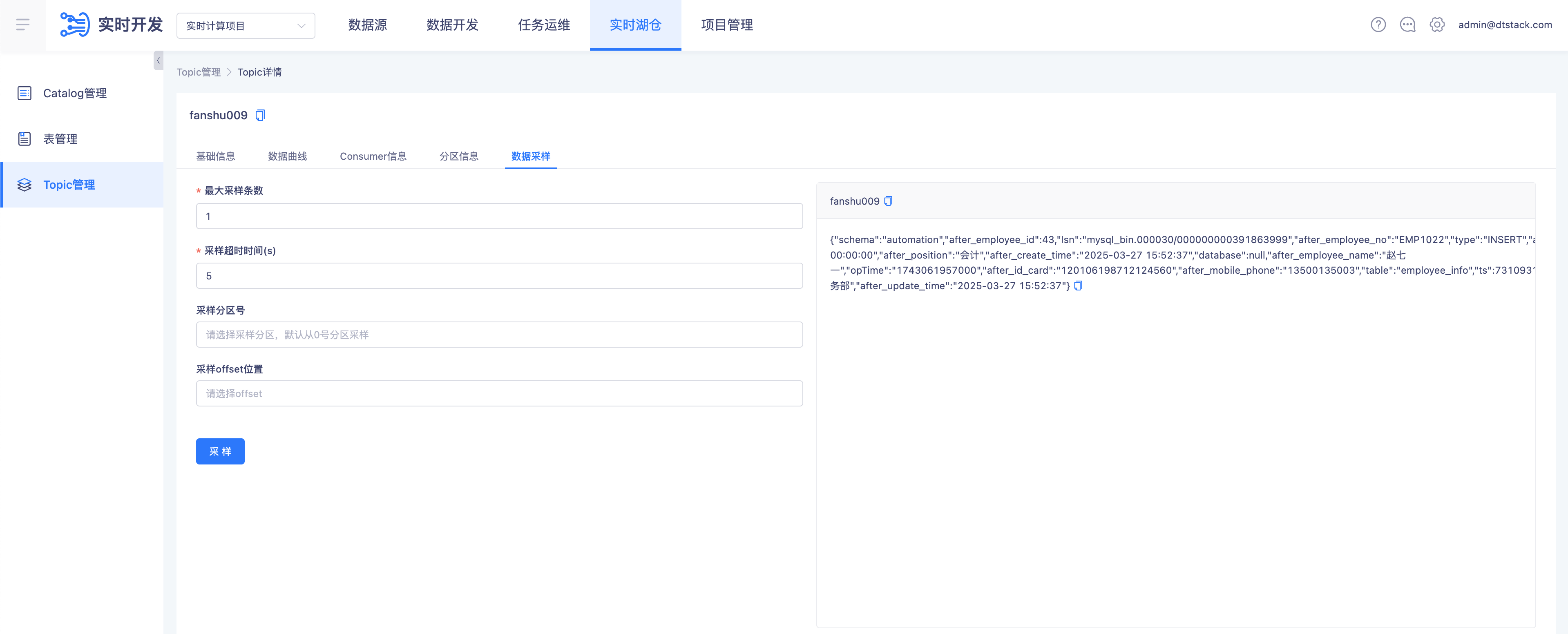

在「Topic管理」中通过Topic名称查询采集过滤后的数据

employee_info表采集过滤：mobile_phone、id_card、bank_account 字段

{"schema":"automation","after_employee_id":43,"lsn":"mysql_bin.000030/000000000391863999","after_employee_no":"EMP1022",
  "type":"INSERT","after_entry_date":"2018-03-15 00:00:00","after_position":"会计","after_create_time":"2025-03-27 15:52:37",
  "database":null,"after_employee_name":"赵七一","opTime":"1743061957000","after_id_card":"120106198712124560",
  "after_mobile_phone":"13500135003","table":"employee_info","ts":7310931560398721024,"after_department":"财务部",
  "after_update_time":"2025-03-27 15:52:37"
}

customer_info表采集过滤：mobile_phone、id_card 字段

{"schema":"automation","lsn":"mysql_bin.000030/000000000392619317","after_customer_name":"李强","type":"INSERT",
  "after_create_time":"2025-03-27 16:18:37","after_email":"liqiang@example.com","database":null,"after_customer_id":5,
  "after_birth_date":"1991-11-08 00:00:00","opTime":"1743063517000","after_gender":"M","after_address":"广东省深圳市南山区科技园",
  "table":"customer_info","ts":7310938103953362944,"after_update_time":"2025-03-27 16:18:37"
}

Mysql前置表SQL

建表语句

CREATE TABLE `customer_info` (
  `customer_id` bigint NOT NULL AUTO_INCREMENT COMMENT '客户ID',
  `customer_name` varchar(50) NOT NULL COMMENT '客户姓名',
  `gender` char(1) DEFAULT NULL COMMENT '性别(M-男,F-女)',
  `birth_date` date DEFAULT NULL COMMENT '出生日期',
  `mobile_phone` varchar(20) DEFAULT NULL COMMENT '手机号码(敏感)',
  `id_card` varchar(18) DEFAULT NULL COMMENT '身份证号(敏感)',
  `email` varchar(100) DEFAULT NULL COMMENT '电子邮箱',
  `address` varchar(200) DEFAULT NULL COMMENT '联系地址',
  `create_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `update_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间',
  PRIMARY KEY (`customer_id`),
  KEY `idx_mobile` (`mobile_phone`),
  KEY `idx_id_card` (`id_card`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='客户基本信息表';

CREATE TABLE `order_info` (
  `order_id` bigint NOT NULL AUTO_INCREMENT COMMENT '订单ID',
  `order_no` varchar(30) NOT NULL COMMENT '订单编号',
  `customer_id` bigint NOT NULL COMMENT '客户ID',
  `total_amount` decimal(12,2) NOT NULL COMMENT '订单总金额',
  `payment_card_no` varchar(20) DEFAULT NULL COMMENT '支付卡号(敏感)',
  `payment_card_name` varchar(50) DEFAULT NULL COMMENT '持卡人姓名',
  `payment_time` datetime DEFAULT NULL COMMENT '支付时间',
  `order_status` tinyint NOT NULL DEFAULT '0' COMMENT '订单状态',
  `create_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `update_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间',
  PRIMARY KEY (`order_id`),
  UNIQUE KEY `uk_order_no` (`order_no`),
  KEY `idx_customer_id` (`customer_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='订单信息表';

CREATE TABLE `employee_info` (
  `employee_id` bigint NOT NULL AUTO_INCREMENT COMMENT '员工ID',
  `employee_no` varchar(20) NOT NULL COMMENT '员工编号',
  `employee_name` varchar(50) NOT NULL COMMENT '员工姓名',
  `department` varchar(50) DEFAULT NULL COMMENT '所属部门',
  `position` varchar(50) DEFAULT NULL COMMENT '职位',
  `mobile_phone` varchar(20) DEFAULT NULL COMMENT '手机号码(敏感)',
  `id_card` varchar(18) DEFAULT NULL COMMENT '身份证号(敏感)',
  `bank_account` varchar(20) DEFAULT NULL COMMENT '银行账号(敏感)',
  `entry_date` date DEFAULT NULL COMMENT '入职日期',
  `create_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `update_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间',
  PRIMARY KEY (`employee_id`),
  UNIQUE KEY `uk_employee_no` (`employee_no`),
  KEY `idx_mobile` (`mobile_phone`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='员工信息表';

插入语句

INSERT INTO `customer_info` (`customer_name`, `gender`, `birth_date`, `mobile_phone`, `id_card`, `email`, `address`) VALUES
('李强', 'M', '1991-11-08', '13700137003', '440305199111083456', 'liqiang@example.com', '广东省深圳市南山区科技园');

INSERT INTO `employee_info` (`employee_no`, `employee_name`, `department`, `position`, `mobile_phone`, `id_card`, `bank_account`, `entry_date`) VALUES
('EMP1022', '赵七一', '财务部', '会计', '13500135003', '120106198712124560', '6222021234567890125', '2018-03-15');
